| Total # Of Inputs | 24 Total |
| Mic/Line Inputs | 24 Line: 1/4" TRS Phone 24 Microphone: 3-pin XLR |
| Stereo Line Inputs | 2 Stereo: L/R Paired 1/4" Phone Line & 3-pin XLR Microphone |
| In-Line Inputs/Returns | No |
| AUX Sends | 6 Aux Sends |
| AUX Returns | 6 Stereo Returns |
| Inserts | 1/4" TRS Phone - Mono Inputs, Main Output and Subgroup Outputs |
| BUS (Group) Outputs | 4 Subgroups: Balanced 3-pin XLR |
| 2 Trk Master I/O | Mix L/R: Stereo Paired 3-pin XLR Balanced and 1/4" Phone |
| ALT I/O | ALT Stereo: L/R Stereo Paired 1/4" Output |
| Monitor Outputs | Monitor: L/R Stereo Paired 1/4" TRS Phone |
| EQ Section | High Filter: 13kHz, +/- 15dB, 2nd order shelving Hi-Mid: 550Hz - 13khz, +/- 15dB, Q=1.5 Lo-Mid: 80Hz - 1.9kHz, +/- 15dB, Q=1.5 Low Filter: 80Hz, +/- 15dB, 2nd order shelving |
| Solo/Mute | All Input Channels |
| Channel Level Control | 100mm Faders |
| Trim/Gain Control | Rotary Potentiometers |
| Phantom Power | +48V Phantom individually switched |
| Metering | 12-segment LED bar graphs |
| Frequency Response | 20Hz to 20kHz <1dB |
| Dynamic Range | Not Specified by Manufacturer |
| Signal-to-Noise Ratio | Measured RMS, 22Hz to 22kHz Bandwidth -128dBu Mic E.I.N. @ unity gain, 150 ohms source impedance |
| Total Harmonic Distortion (THD) | <0.006%Mic sens. -30dBu, +20dBu at all outputs @ 1kHz |
| Power Supply | Internal AC PSU - 85V, 270V AC, 50/60Hz universal input Power Consumption Less than 150W |
| Dimensions (WxHxD) | 39.88 x 6.24 x 25.81" (1013 x 159 x 656mm) |
| Weight | 25 kg |

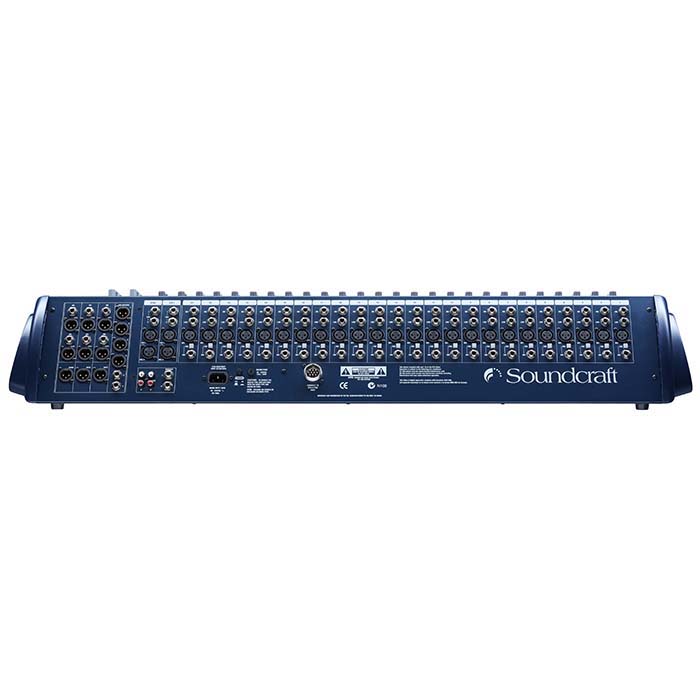

SOUNDCRAFT GB2 24 CH
