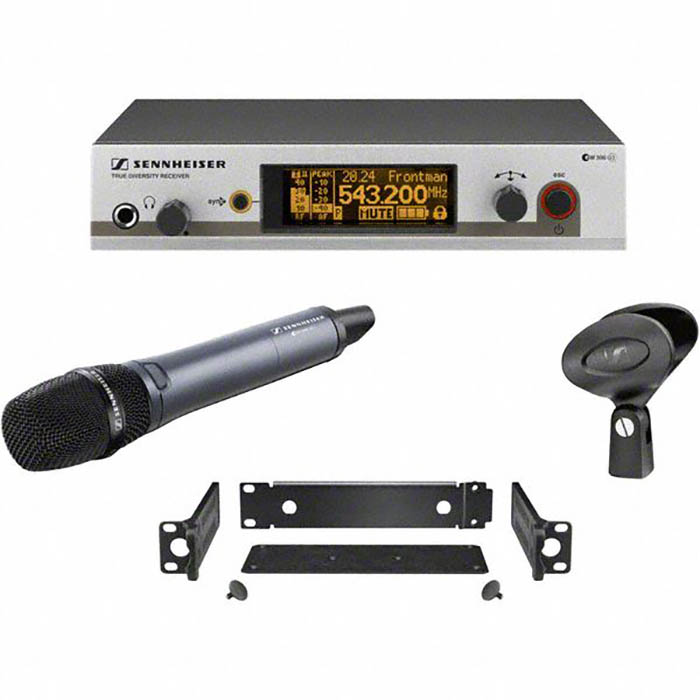

Sennheiser ew345g3

TECHNICAL DATA

• Frequency range

  606...648 MHz
  925...937.5 MHz / Korea
  823...865 MHz / Power supply unit UK
  823...865 MHz / Power supply unit EU / Germany
  823...865 MHz / Power supply unit EU
  780...822 MHz / Power supply unit UK
  780...822 MHz / Power supply unit EU / Germany
  780...822 MHz / Power supply unit EU
  734...776 MHz / Power supply unit US
  734...776 MHz / Power supply unit EU
  626...668 MHz / Power supply unit US
  626...668 MHz / Power supply unit EU
  566...608 MHz / Power supply unit US
  566...608 MHz / Power supply unit EU
  516...558 MHz / Power supply unit US
  516...558 MHz / Power supply unit EU

• Dimensions

  Receiver: 212 x 202 x 43 mm

• Dimensions

  Transmitter: Ø 54 x 265 mm

• • Frequency response (microphone)

    80 - 18000 Hz

  • Compander

    HDX

  • Audio-XLR connector

    6,3 mm

  • Presets

    24

  • Microphone

    dynamic

  • Sound pressure level (SPL)

    154 dB(SPL) max.

  • THD, total harmonic distortion

    < 0,9 %

  • Weight

    Receiver: 980 g

  • Weight

    Transmitter: 450 g

  • AF sensitivity

    1,6 mV/Pa

  • Signal-to-noise ratio

    > 115 dB(A)

  • RF frequency range

    516...865 MHz

  • RF output power

    10/30 mW

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422 , ETS 300445 , CE , FCC

  • Operating time

    Transmitter: > 8 h

  • Antenna connector

    2 BNC, 50 Ω

  • Audio output level (balanced)

    XLR : +18 dBu max

  • Audio output level (unbalanced)

    Jack : +10 dBu max
