Sennheiser ew100-eng

TECHNICAL DATA

• Frequency range

  516...558 MHz
  626...668 MHz
  734...776 MHz
  780...822 MHz / Germany
  823...865 MHz / Germany
  606...648 MHz
  780...822 MHz
  823...865 MHz
  566...608 MHz

• Dimensions

  Receiver: 82 x 64 x 24 mm

• Dimensions

  Transmitter: 82 x 64 x 24 mm (SK100 G2), 105 x 43 x 43 mm (SKP100G2)

• • Frequency response (microphone)

    80 - 18000 Hz

  • Compander

    HDX

  • Audio-XLR connector

    3,5 mm Jack

  • Presets

    12

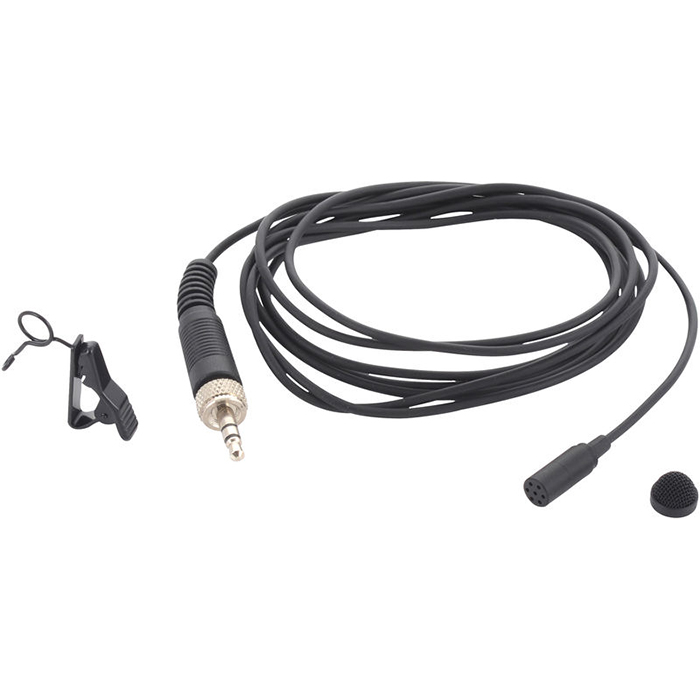

  • Microphone

    electret

  • Sound pressure level (SPL)

    130 dB(SPL) max.

  • THD, total harmonic distortion

    < 0,9 %

  • Weight

    Receiver: ~ 160 g

  • Weight

    Transmitter: ~ 160 g (SK100G2), 195g (SKP100G2)

  • Pick-up pattern

    omni- directional

  • AF sensitivity

    20 mV/Pa

  • Signal-to-noise ratio

    > 110 dB(A)

  • RF output power

    30 mW

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Operating time

    Transmitter: > 8 h

  • Input voltage range

    Mic/Line: 1,8V/3,0V (SK100G2), Mic: 1,2V (SKP100G2)

  • Audio output level (unbalanced)

    +10 dBu max
